| Place of Origin: | CHINA |
|---|---|
| Brand Name: | COOSAI |
| Certification: | API6D API6F |
| Model Number: | Q41F |
| Packaging Details: | PLYWOOD CASE |
| Fire Safe: | API 607/API 6FA | Operation: | Manual/Pneumatic/Electric |
|---|---|---|---|
| Pressure: | Class 150-900 | Body Material: | CF8M/CF8/WCB |
| Seat Material: | PTFE/RPTFE/NYLON/DEVLON | End Connection: | RF/RTJ/BW |
| Test Standard: | API 598/API 6D | Temperature: | -29℃-425℃ |
| High Light: | Anti Static Floating Ball Valve,F304L Floating Ball Valve,Anti Static Floating Ball Valve F304L |
||

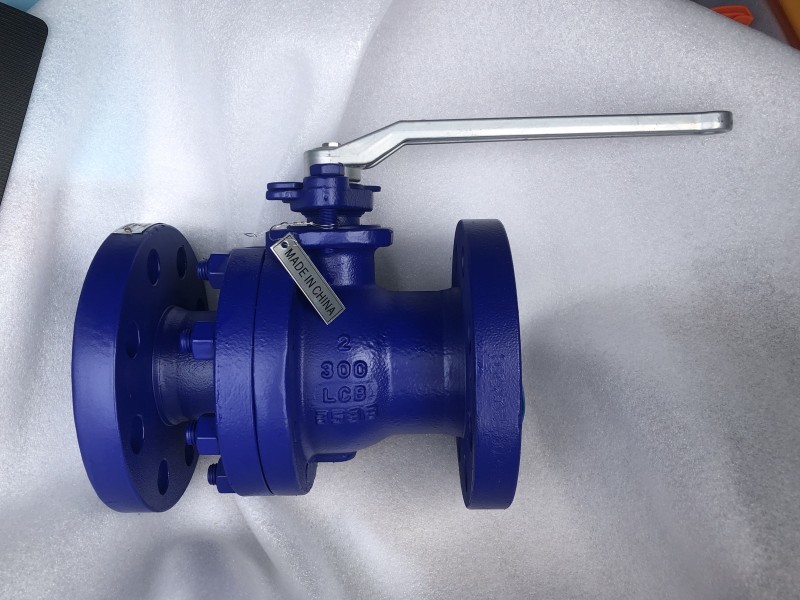

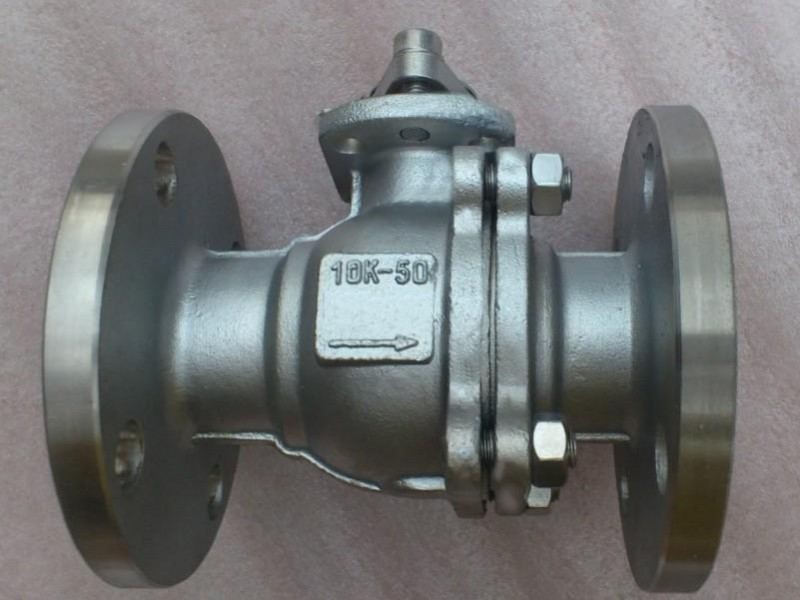

The Floating Ball Valve is a forging type ball valve with pressure class ranged from 150-900, connections type in flanged, and size ranged from 2-24 inch. It can be operated by manual, pneumatic or electric actuator. It is designed according to the standards of API 6D, API 608 and BS 5351.
The floating type ball valve is made of superior materials and advanced processing technology. It features with superior performance, reliable sealing, high strength, good abrasion resistance, long service life, small friction coefficient, less operating torque, simple structure, small size, light weight and easy installation and maintenance.
The Floating Ball Valve is widely used in oil & gas, petrochemical, chemical, pharmaceutical, food and water supply industries.
| Property | Value |
|---|---|
| Design Standard | API 6D/API 608/BS 5351 |
| Seat Material | PTFE/RPTFE/NYLON/DEVLON |
| Anti-Static | API 608 |
| Connection Type | Flanged |
| Test Standard | API 598/API 6D |
| Stem Packing | PTFE/Graphite/PEEK |
| Size | 2-24 inch |
| Name | F304L Flanged Floating Ball Valve |
| Pressure | Class 150-900 |
| Temperature | -29℃-425℃ |
| 2 piece ball valve | Yes |
| Forging Type Ball Valve | Yes |
The F304L Flanged Floating Ball Valve is a 2-piece floating type ball valve designed to meet the Test Standard of API 598/API 6D. It features PTFE/Graphite/PEEK stem packing, Fire Safe design of API 607/API 6FA, and Anti-Static design of API 608. The valve body is made of Forging Type material, which makes it an ideal choice for harsh working environment. It is widely used in the Oil & Gas, Petrochemical, and Chemical industries.
Floating Ball Valve Technical Support and Service
The Floating Ball Valve is packaged and shipped using the following process:
Q1: What is a Floating Ball Valve?
A1:A Floating Ball Valve is a type of valve used to control and manage the flow of liquids or gases. It is designed with a ball in the center which is attached to a stem and is driven by a handle or lever. The ball has a hole in it, and when the valve is opened, the hole is aligned with the inlet and outlet of the valve, allowing the liquid or gas to flow through.
Q2: What are the benefits of using a Floating Ball Valve?
A2:Floating Ball Valves offer a number of benefits, including easy operation, reduced maintenance costs, and improved process control. Additionally, Floating Ball Valves are typically more reliable and more efficient than other types of valves.
Q3: What materials are Floating Ball Valves made of?
A3:Floating Ball Valves are typically made of stainless steel, carbon steel, brass, or other metals, depending on the application. They can also be made of plastic or other non-metallic materials.
Q4: What is the difference between a Floating Ball Valve and a Trunnion Ball Valve?
A4:The primary difference between a Floating Ball Valve and a Trunnion Ball Valve is the way the ball is secured. In a Floating Ball Valve, the ball is free-floating, allowing it to move within the valve body. In a Trunnion Ball Valve, the ball is secured at both ends, which provides better sealing and less wear over time.
Q5: How do I know when it is time to replace a Floating Ball Valve?
A5:Floating Ball Valves generally last a long time, but it is important to regularly inspect the valve for wear or damage. If you notice any signs of wear or damage, it is important to replace the valve as soon as possible. Additionally, if the valve is not properly functioning, it is time to replace it.
